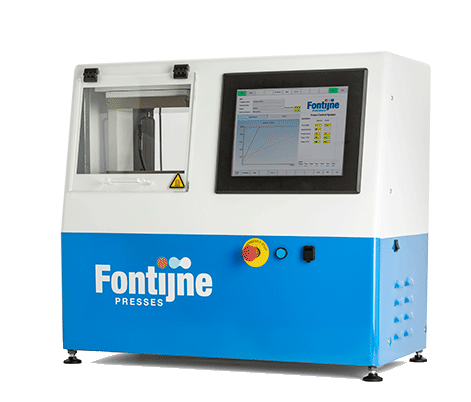

LabTop series

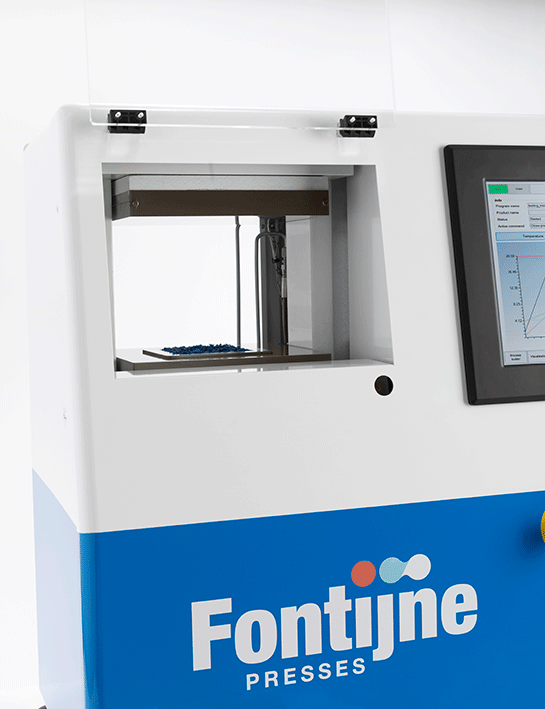

Fontijne Presses’ benchtop LabTop series – available with a press range of 150 or 300kN – is an automated hydraulic laboratory press, which combines the modest footprint of our manually operated LabManual machines with the automated ProView control system that is used in our LabEcon and LabPro series. The critically acclaimed LabTop series is known for its accurate and consistent pressing quality, and is therefore widely chosen as sample preparation press for quality control and R&D.

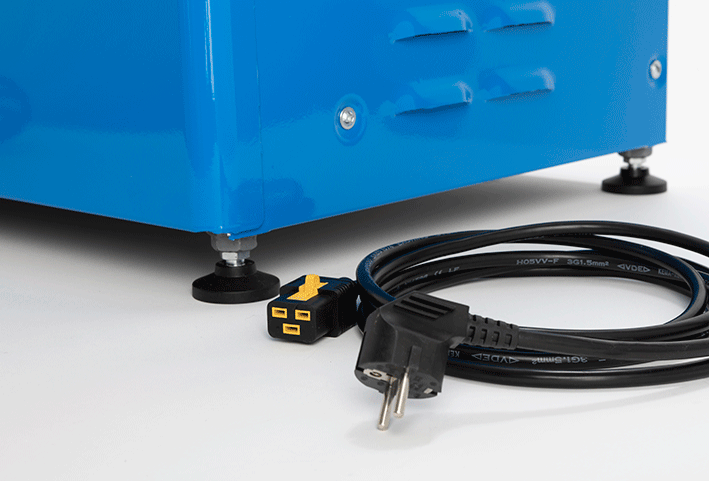

Depending on the model – 150 or 300 – the press range goes up to 150 or 300 kN at 300°C. Regardless of the model or settings used, the results will always be accurate and consistent. Thanks to its small footprint and its 230V connection, the LabTop can easily get installed in any lab. Its ergonomic design and straightforward touchscreen interface are highly appreciated by lab technicians.

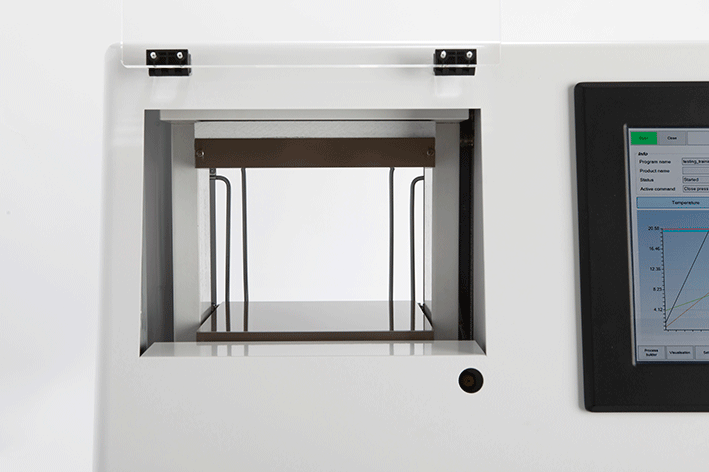

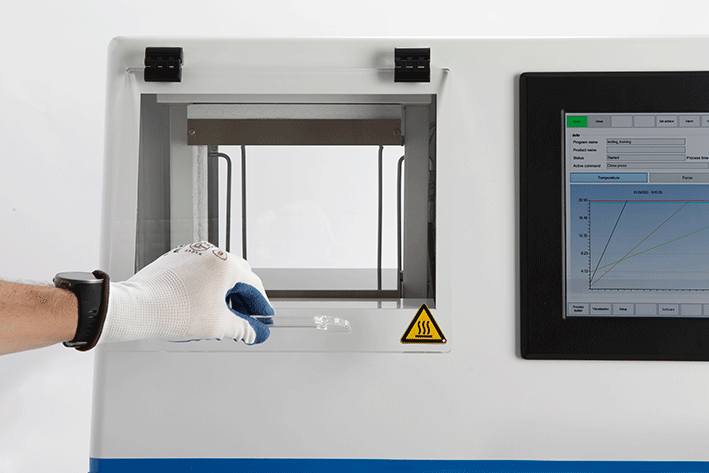

Furthermore, the LabTop series incorporates many additional safety features, such as a fixed upper platen, an emergency stop system and a safety shield.
The LabTop series is recommended for all demanding quality control and R&D applications where accuracy and consistency are prerequisites.

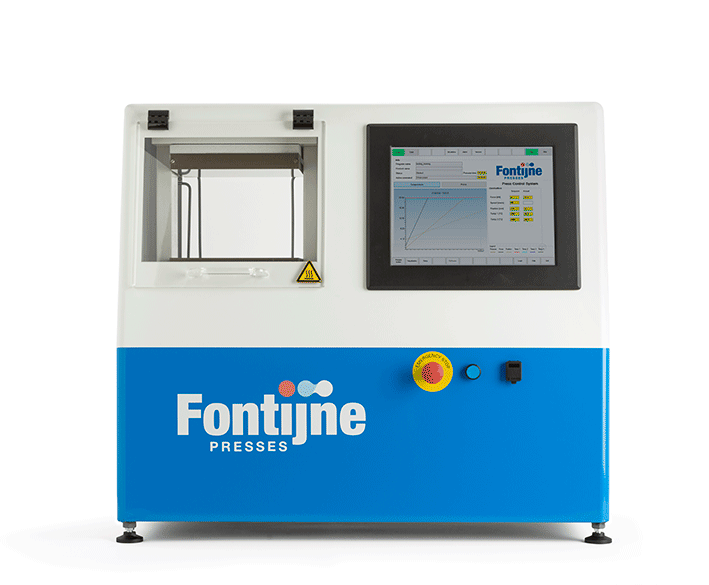

The LabTop press is delivered with our ProView control system which includes a 15” touch screen for temperature and closing force control. The large screen area of the ProView system gives the user a very good view on the settings and progress of the LabTop as well as extra comfort to control the unit.
The press also includes an automatic venting system/degassing stroke that allows to vent the unit by automatically opening and closing – after a preset period of time – the press.
Options
Fontijne Presses offers several options, allowing you to get the best performance out of your LabTop lab press.
Active cooling system
Automated water cooling of the press platens, controlled by electric valves. This way, the press can be deployed swiftly for upcoming tasks that need a lower temperature setpoint. Please note that the cooling system can be made compliant with ASTM D4703 (to achieve a 15°C/min cooling ramp) upon request.
Chromated backing platens

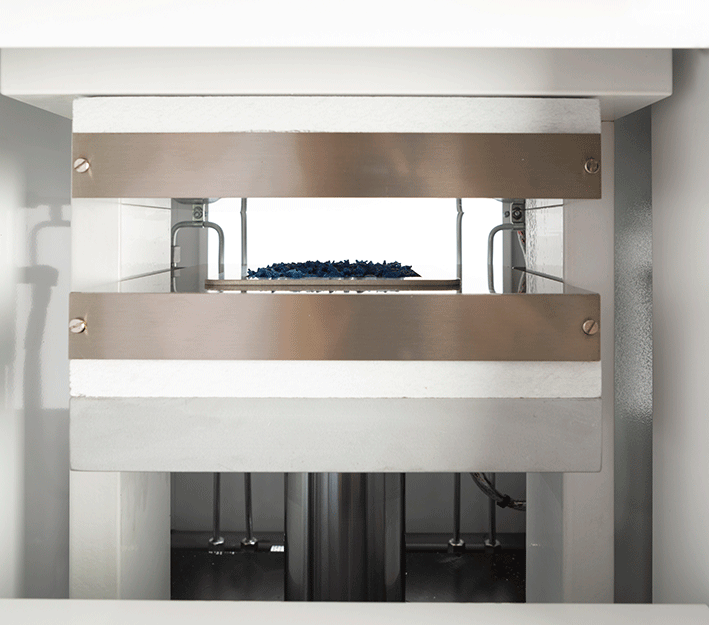

When using higher temperature settings, the sample material may adhere to the platens. This can easily be prevented by using a set of a chromated backing platens.
Extended guarantee & maintenance plan
Upon request, the standard guarantee period can be extended. Fontijne Presses also offers preventive maintenance and a calibration service.
Technical specifications
| LabTop | 150 | 300 | |
|---|---|---|---|
| Maximum closing force* | kN | 150 | 300 |
| Platen size* | mm | 200 x 200 | 250 x 250 |
| Specific pressure with full load | N/mm2 | 3,75 | 4,8 |
| Specific pressure with 150 x 150 load | N/mm2 | 6,66 | 13,32 |
| Max. temperature | °C | 300 | |
| Daylight opening Refers to the opening between the upper and the lower platen | mm | 175 | |
| Mains voltage/amperage | 230VAC 50Hz / 16A | ||
| Length x width x height | mm | 930 x 490 x 840 | |
| Weight | kg | 230 | 285 |
* These parameter values can be altered upon request. Please contact us for further information.
Fontijne Presses BV has a policy of continuous product development and reserves the right to amend these specifications without prior notice.
ProView Control System Instruction Video
The ProView control system allows you full control over the press cycle and comes with a wide range of features and setting options. Discover these features and how to work with them in our clear step-by-step explanatory video.
